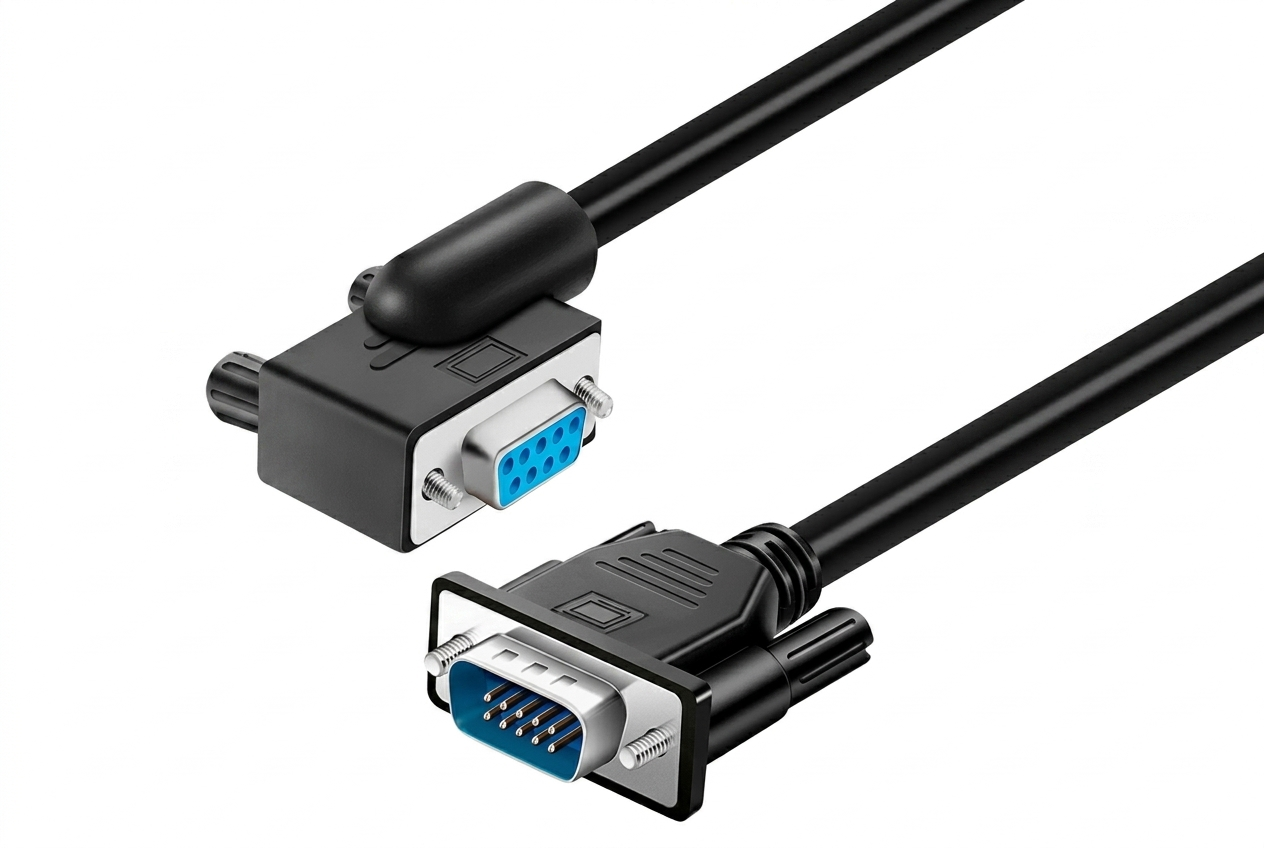

Custom DB9 RS232 Serial Data Cable (Straight & 90-Degree Angled)

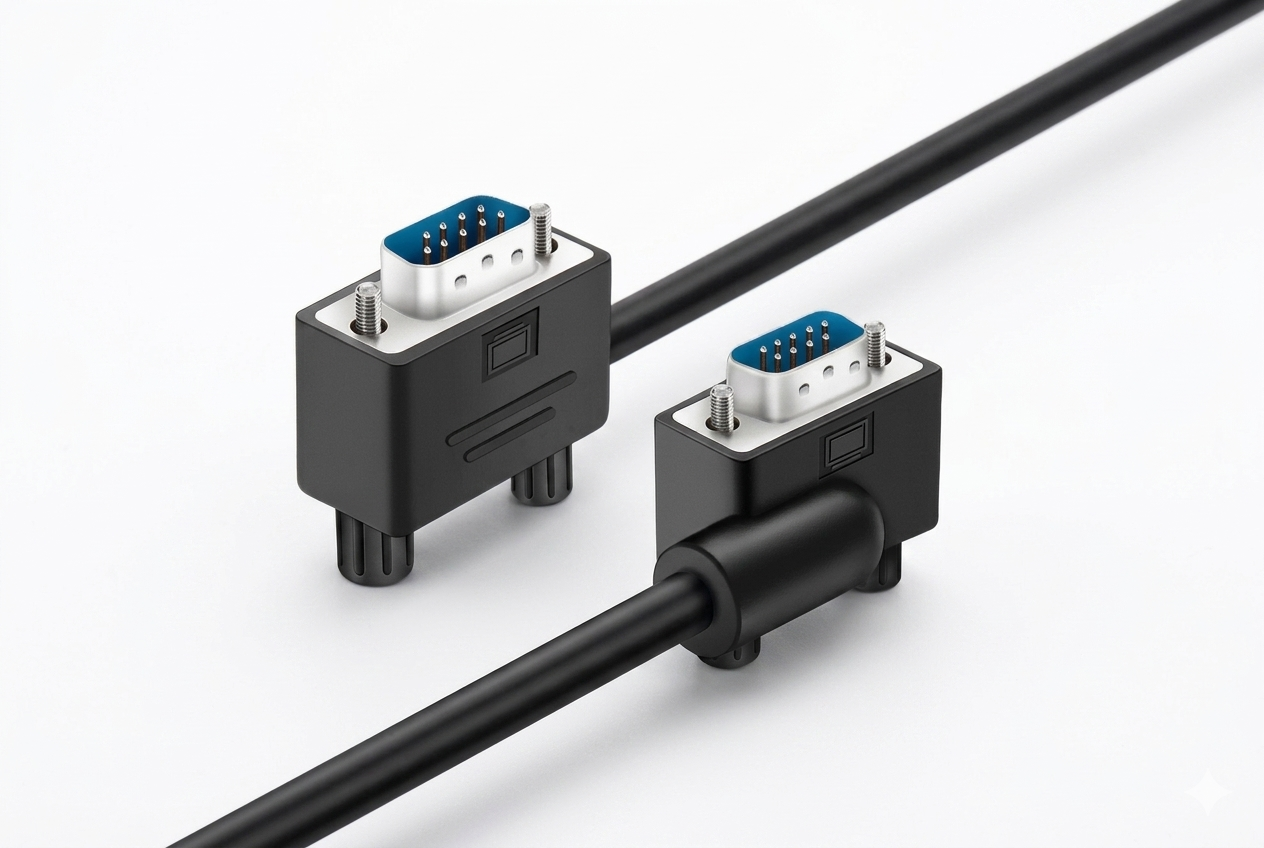

Custom DB9 RS232 Serial Data Cable (Straight & 90-Degree Angled) - Image 2
Custom DB9 RS232 Serial Data Cable (Straight & 90-Degree Angled) - Image 3

Custom DB9 RS232 Serial Data Cable (Straight & 90-Degree Angled)

  • Connector Types: DB9 (9-Pin D-Sub) Male or Female

  • Form Factor: Standard Straight, 90-Degree Angled (Multiple exit orientations)

  • Contact & Shell Plating: Premium Gold-plated or Cost-effective Nickel-plated options

  • Conductor: Pure Copper / Tinned Copper for reliable data transmission

  • Cable Specification: OD 6.0mm with Eco-friendly flexible PVC jacket

  • EMI/RFI Protection: Optional advanced shielding and Ferrite Cores available

  • Applications: Industrial PCs, CNC machinery, PLC programming, POS systems

  • MOQ / Lead Time: Low MOQ, 7–15 days (project-based)

Request Custom Quote

  • Comprehensive Angled Tooling: We own an extensive range of injection molds to solve any tight-space routing problem. You can choose any combination: Straight-to-Straight, Straight-to-Angled, or Angled-to-Angled. We even support specific 90-degree orientations (e.g., cable exiting towards the wider or narrower edge of the D-Sub connector) to perfectly fit your equipment clearance.

  • Plating Options (Gold vs. Nickel): Customize your connectors based on project budget and environment. Choose Nickel-plated connectors for standard, cost-effective applications, or upgrade to Gold-plated contacts and shells for maximum corrosion resistance and superior signal integrity in harsh industrial environments.

  • Enhanced EMI/RFI Shielding & Ferrite Cores: For environments with high electromagnetic interference (like factory floors with heavy motors), we offer customized cable constructions featuring Aluminum Foil + Braided Shielding. We can also integrate custom Ferrite Cores (Magnetic Rings) at one or both ends to filter out high-frequency noise and prevent data packet loss.

  • Custom Wiring & Pinouts: Fully customizable internal wiring. Whether you need a standard straight-through connection, a Null Modem (crossover) configuration, or specific partially populated pins (e.g., only TX, RX, and GND), we manufacture strictly to your schematic.
