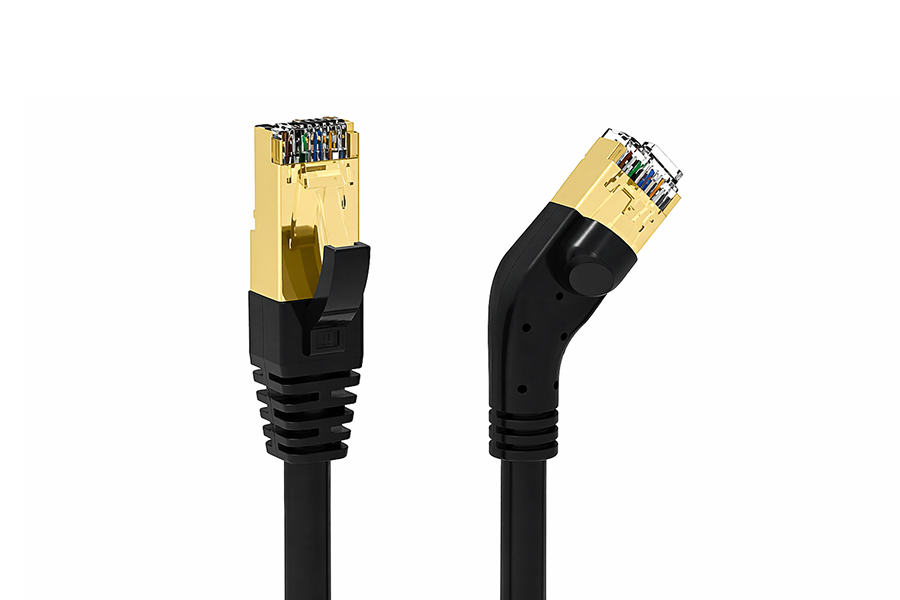

Custom 45-Degree Angled RJ45 Ethernet Patch Cable (Cat6 / Cat6A / Cat7 / Cat8)

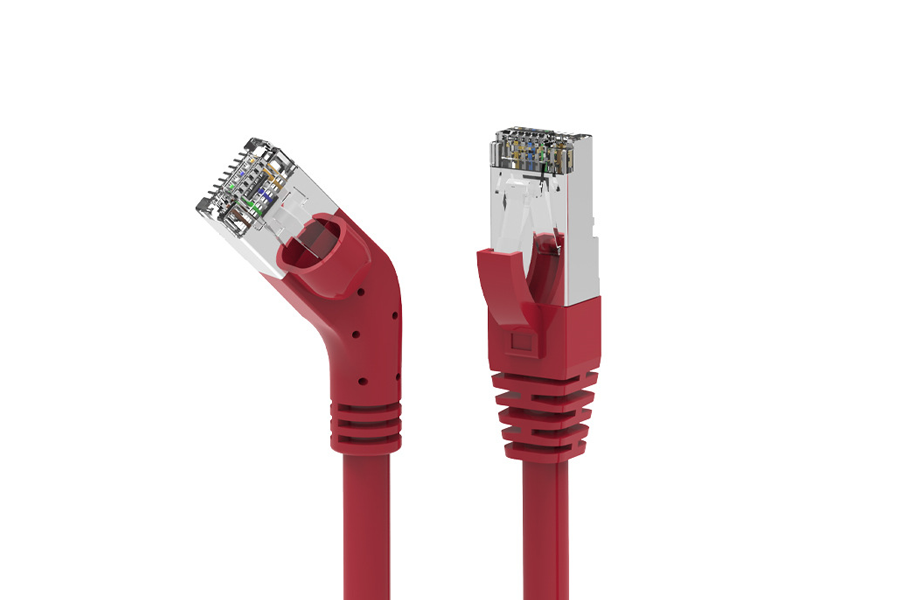

Custom 45-Degree Angled RJ45 Ethernet Patch Cable (Cat6 / Cat6A / Cat7 / Cat8) - Image 2

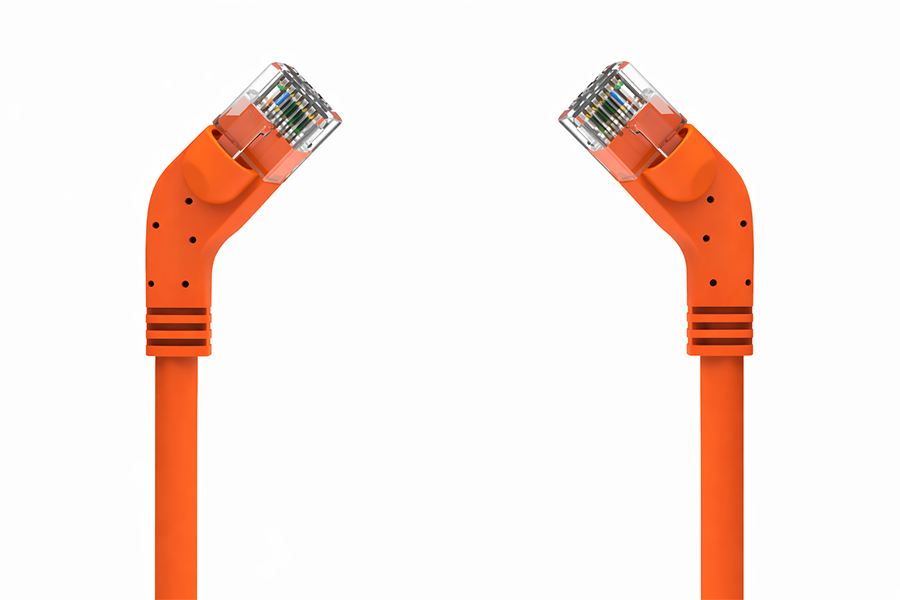

Custom 45-Degree Angled RJ45 Ethernet Patch Cable (Cat6 / Cat6A / Cat7 / Cat8) - Image 3

Custom 45-Degree Angled RJ45 Ethernet Patch Cable (Cat6 / Cat6A / Cat7 / Cat8)

  • Connector A: RJ45 Male (Standard Straight)

  • Connector B: RJ45 Male (45° Left or Right Angled)

  • Performance Categories: Cat.6, Cat.6A, Cat.7, Cat.8 available

  • Shielding Options: U/UTP (Unshielded) or S/FTP (Shielded)

  • Contacts: 50μ” Gold-Plated for maximum signal reliability and corrosion resistance

  • Color options: Red, Black, Grey, Blue, Green, Orange etc

  • Cable OD: 6.0mm (standardized for easy routing)

  • MOQ / Lead Time: Low MOQ, 7–15 days (project-based)

Request Custom Quote

  • Angle Orientation: Choose from 45° Left, 45° Right, or traditional 90° Up/Down angles to perfectly fit your server racks or wall-mounted enclosures.

  • Category & Wire Gauge: * Cat.8 S/FTP (28AWG) – for ultra-high-speed 25G/40G networks (Max length: 10m)

    • Cat.7 S/FTP (26AWG) / Cat.6A U/UTP (24AWG) – for 10G networks (Max length: 30m)

    • Cat.6 S/FTP (26AWG) / Cat.6 U/UTP (24AWG) – for Gigabit networks (Max length: 30m)

  • Jacket Materials: Choose between standard PVC or LSZH (Low Smoke Zero Halogen) for data center compliance.

  • Color Coding: Multiple jacket colors available (Grey, Black, Blue, Green, Orange, etc.) for efficient network cable management.

  • Custom Lengths: Manufactured to your exact length requirements to eliminate cable clutter.
