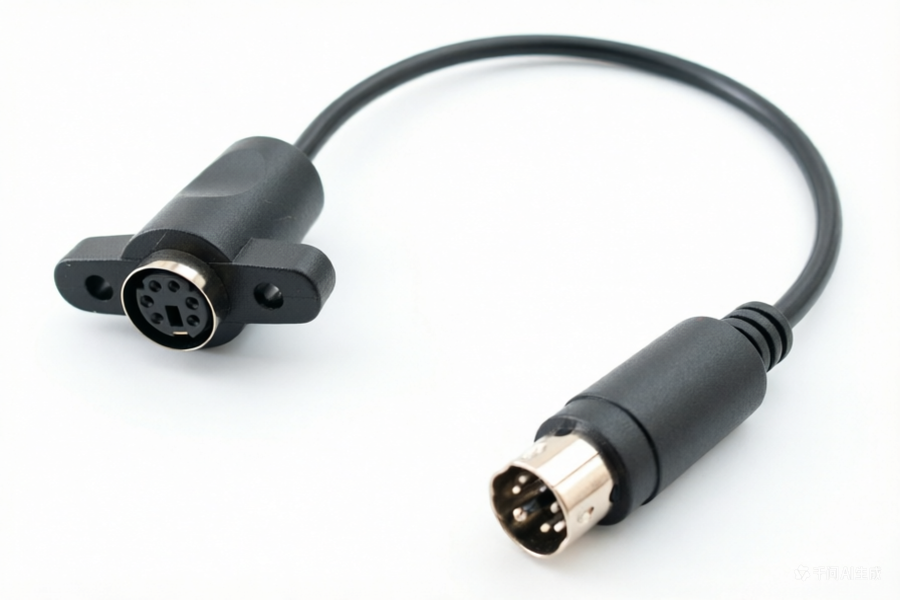

Custom Mini-DIN Panel Mount to Straight Plug Cable Assembly

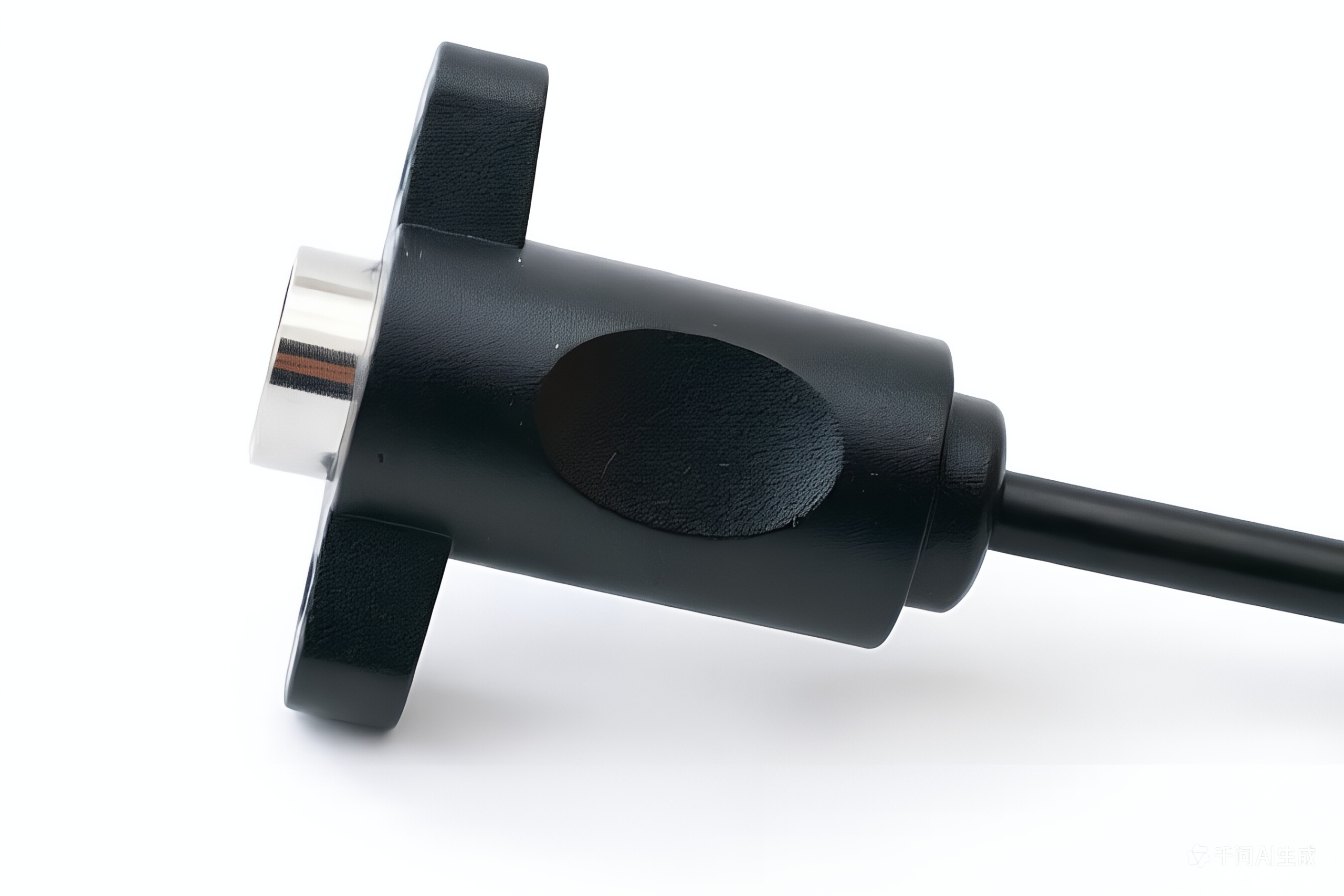

  • Connector A: Mini-DIN Female (Panel Mount Overmold)
  • Connector B: Mini-DIN Male (Straight Overmold)
  • Cable: UL listed, PVC, Rubber, Silicon, PUR, TPE, Shielded (customizable)
  • Length: 0.2–5.0 m (customizable)
  • Mounting: Dual screw locks, vibration-resistant
  • Shielding: Foil + drain wire (optional braid)
  • Testing: 100% continuity test, hi-pot testing
  • MOQ / Lead Time: Low MOQ, 7–15 days (project-based)
Request Custom Quote
  • Pinout / wiring diagram per your drawing
  • Cable length, OD, jacket material (PVC/PUR), color
  • Shielding upgrade (foil + braid), drain wire, EMI design
  • Overmold / strain relief shape & hardness (TPU/PVC)
  • Labeling: heat-shrink / barcode / serial number
  • Packaging: individual bag, blister, custom carton marking
  • Full BOM support: connector alternatives & equivalents
