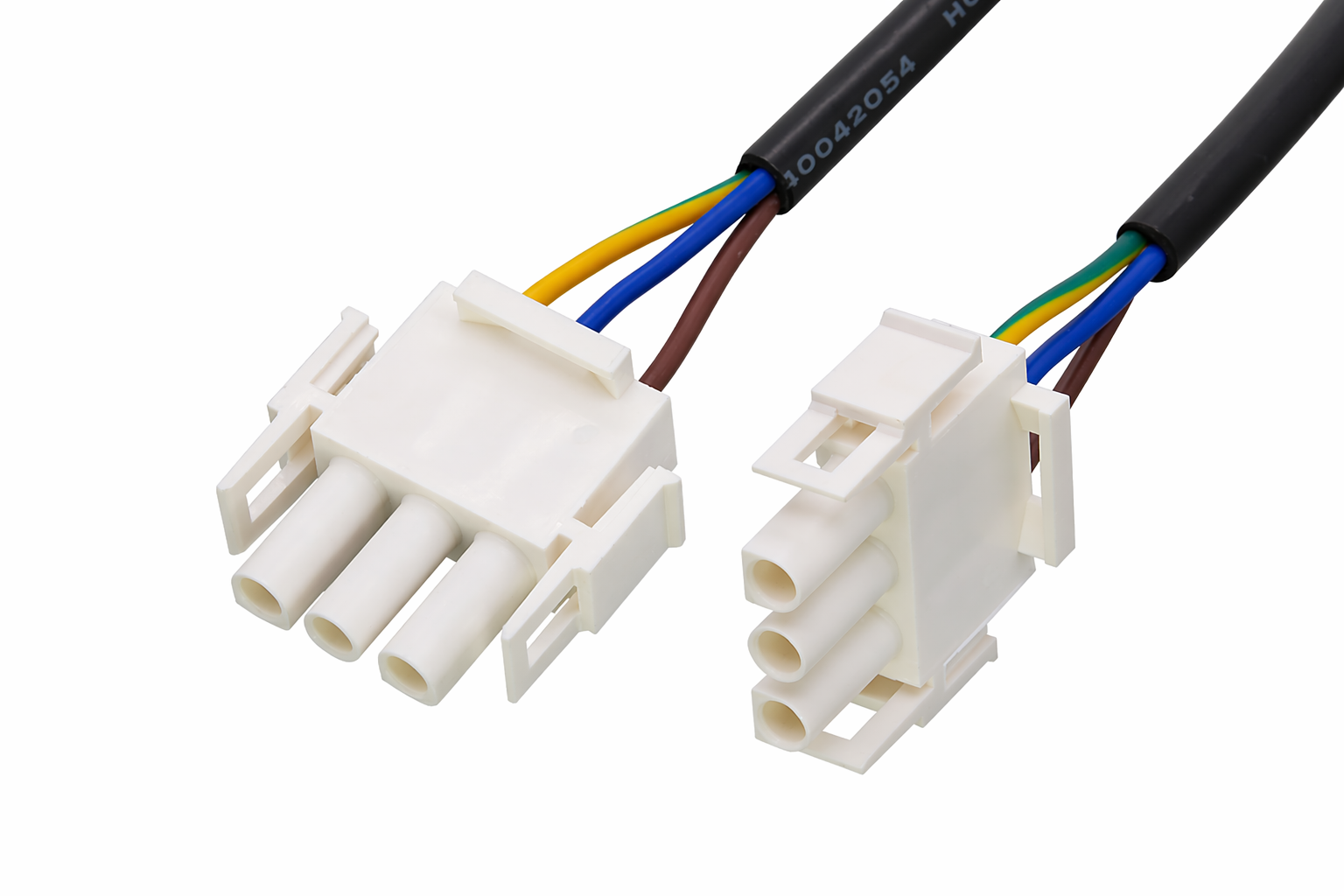

Custom Servo & Inverter Power Cable Assembly (Molex 36643-0003 / Equivalent)

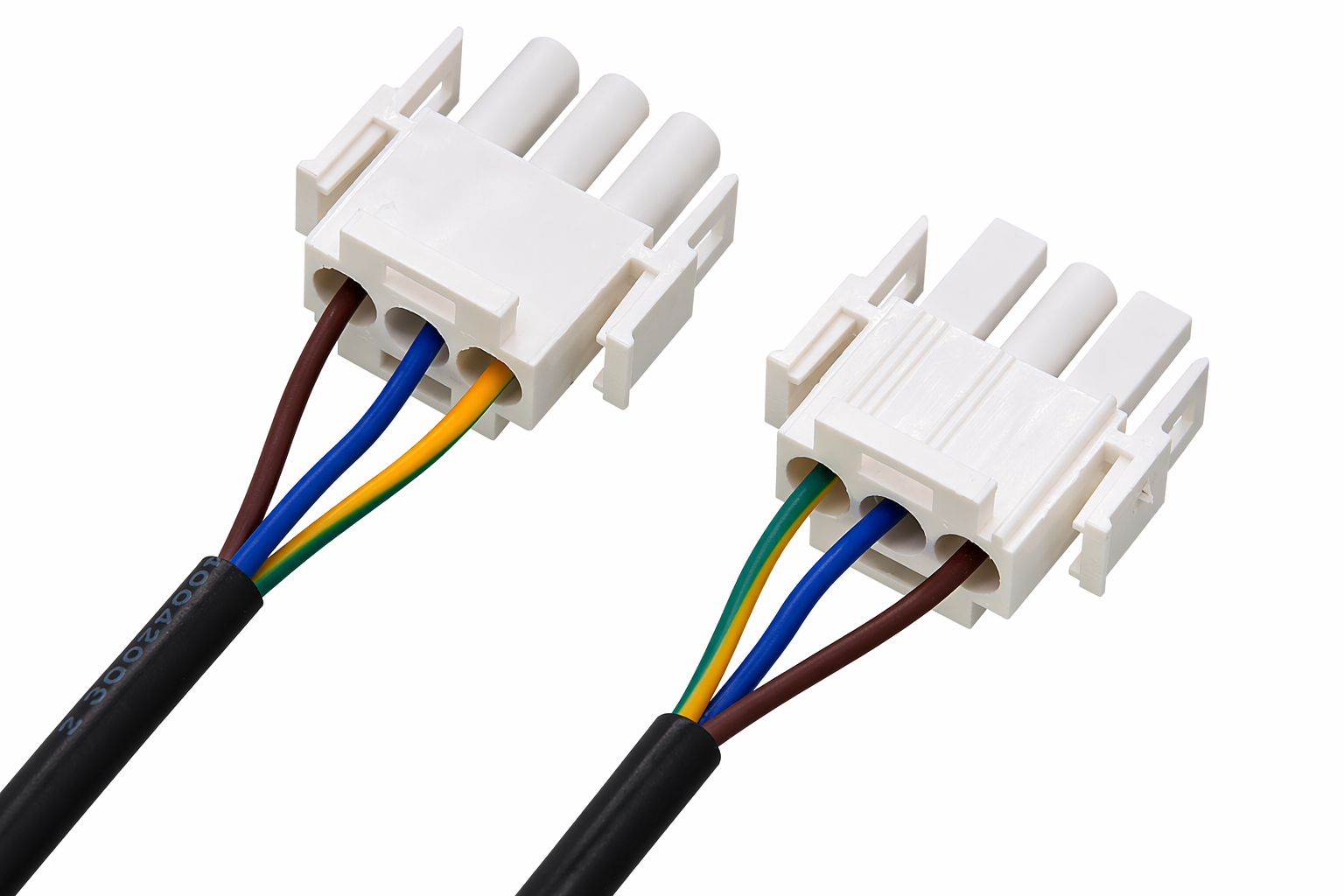

Custom Servo & Inverter Power Cable Assembly (Molex 36643-0003 / Equivalent) - Image 2

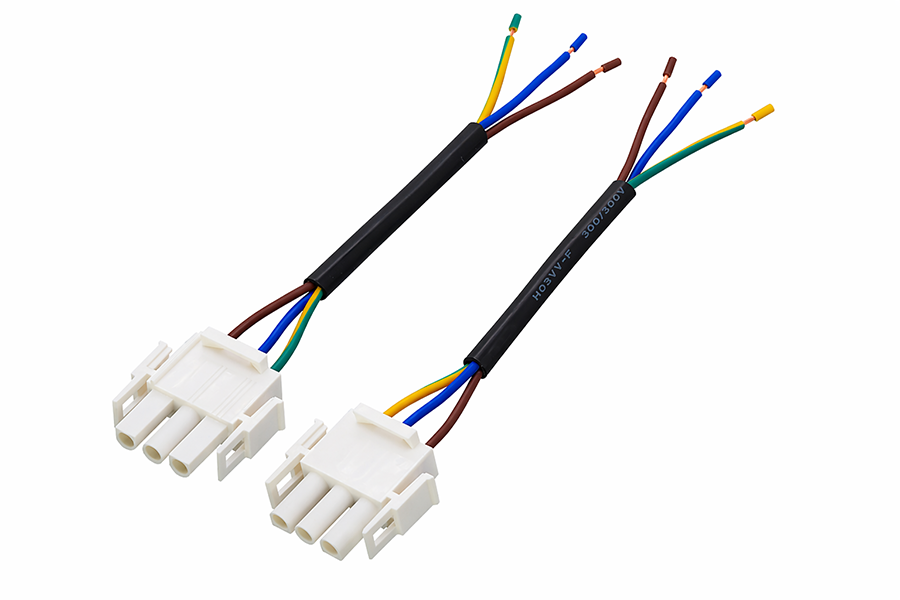

Custom Servo & Inverter Power Cable Assembly (Molex 36643-0003 / Equivalent) - Image 3

Custom Servo & Inverter Power Cable Assembly (Molex 36643-0003 / Equivalent)

  • Connector A: Housing MOLEX 36643-0003 (Equivalent available), Rectangular Power Connector, 3 Pin, Male, Crimp Terminal

  • Connector B: Semi-strip (Stripped/Tinned, Ring Terminals, or per drawing)

  • Wire Gauge: 14 AWG – 18 AWG (customizable for high-current applications)

  • Applications: Servo Inverters, Sensor Systems, PV (Photovoltaic) Energy Storage

  • Manufacturing Standard: IPC/WHMA-A-620 Class 3 compliant

  • Cost Optimization: Features UL-certified equivalent housings for significant BOM cost reduction

  • MOQ / Lead Time: Low MOQ, 7–15 days (project-based)

Request Custom Quote

  • Connector Sourcing Strategy: We offer high-quality, UL-certified equivalent housings replacing the original MOLEX 36643-0003. This provides identical mechanical and electrical performance (mating retention, current rating) while significantly reducing your overall BOM costs and lead times. Original Molex parts are also available upon request.

  • Cable Specifications: Available in 14 AWG to 18 AWG multi-core cables. Options include standard PVC, high-flex PUR (for robotics/servos), or XLPE for solar/PV energy storage environments.

  • Wire Color Coding: Custom conductor colors available (e.g., Brown, Blue, Yellow/Green ground, Black) to strictly match international electrical safety standards.

  • Secondary End Processing: The opposite end can be customized with blunt cuts, partial strips, tinning, or crimped with heavy-duty ring terminals / ferrule lugs for easy integration into inverter terminal blocks.

  • Quality Assurance: 100% pin-to-pin electrical testing, crimp pull-force testing, and high-voltage (Hi-Pot) testing to ensure absolute reliability in industrial power delivery.
