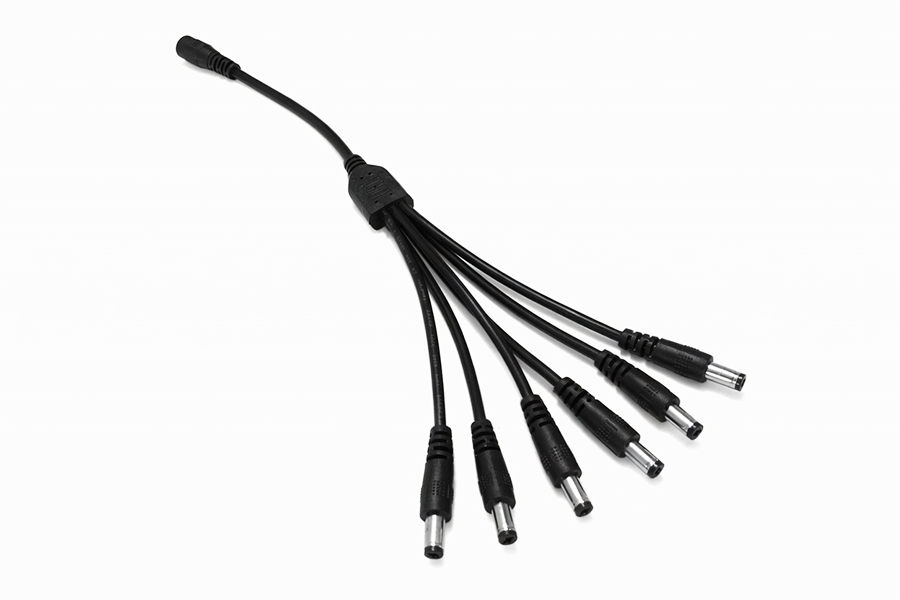

DC Power Splitter Cable (1 Female to 2/3/4/8 Male, 5.5x2.1mm)

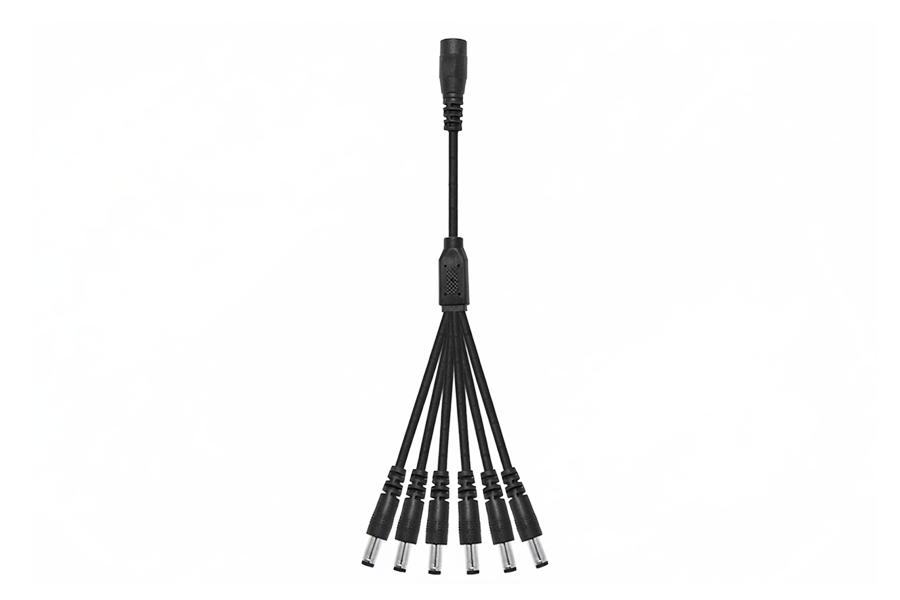

DC Power Splitter Cable (1 Female to 2/3/4/8 Male, 5.5x2.1mm) - Image 2

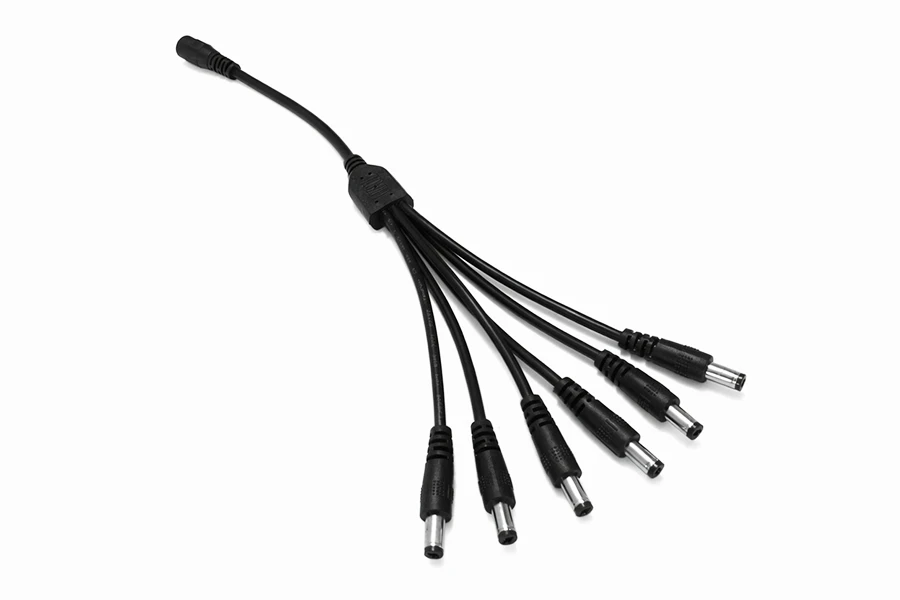

DC Power Splitter Cable (1 Female to 2/3/4/8 Male, 5.5x2.1mm) - Image 3

DC Power Splitter Cable (1 Female to 2/3/4/8 Male, 5.5x2.1mm)

  • Input Connector: 1 x DC 5.5×2.1mm Female Jack

  • Output Connectors: Multiple DC 5.5×2.1mm Male Plugs (2-way up to 8-way splits)

  • Wire Specification: Premium 22AWG Pure Copper Core

  • Standard Lengths: 15cm / 30cm (Fully customizable)

  • Jacket Material: Flexible, PVC (Black)

  • Design Feature: Heavy-duty overmolded Y-junctions for superior strain relief

  • Applications: CCTV Security Cameras, LED Strip Lighting, NVR/DVR systems, Pedal Boards

  • MOQ / Lead Time: Low MOQ, 7–15 days (project-based)

Request Custom Quote

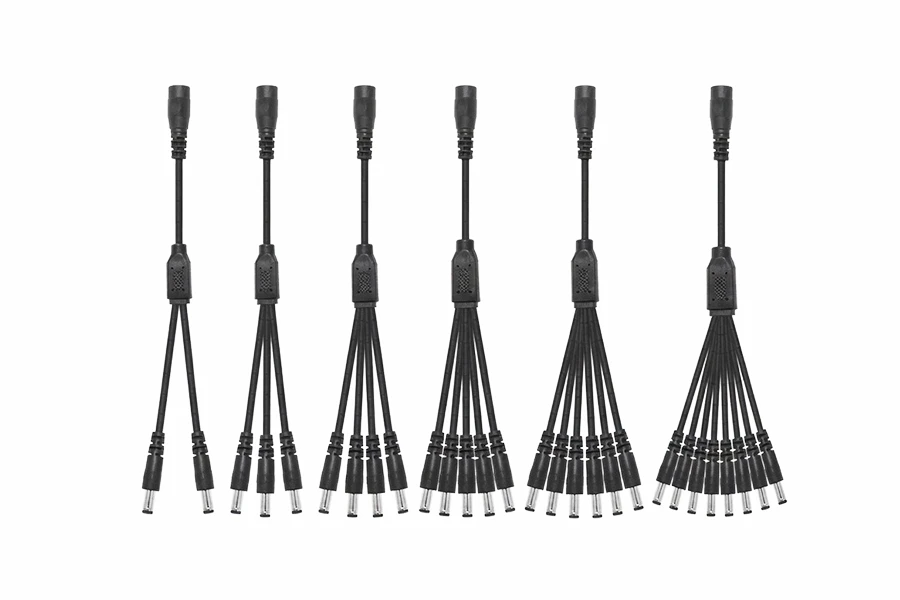

  • Any Split Configuration (1-to-N): We offer flexible manufacturing for any split ratio you need—whether it’s a standard 1-to-2 Y-splitter, a 1-to-4 squid cable for CCTV systems, or up to a 1-to-8 configuration for high-density LED setups.

  • Optimized Wire Gauges (To Prevent Voltage Drop): For multi-way splitters carrying higher currents, we can engineer the cable with a thicker main trunk wire (e.g., 18AWG or 20AWG) and standard branch wires (22AWG). This intelligent design ensures stable power delivery to all end devices without significant voltage loss.

  • Connector Sizing: While the 5.5×2.1mm barrel is standard, we can customize the molds for 5.5×2.5mm, 3.5×1.35mm, or mix different DC plug sizes on the same splitter cable to match your specific equipment requirements.

  • Durable Overmolded Junctions: Our cable are professionally injection-overmolded. This provides exceptional pull-strength and protects the internal solder joints from bending fatigue.
