Industrial Cat6 S/FTP Ethernet RJ45 Angle overmold Cable
Industrial Cat6 S/FTP Ethernet RJ45 Angle overmold Cable - Image 2
Industrial Cat6 S/FTP Ethernet RJ45 Angle overmold Cable - Image 3

Industrial Cat6 S/FTP Ethernet RJ45 Angle overmold Cable

  • Connector Types: Industrial Shielded RJ45 (Straight, 90° Up, Down, Left, Right Angled)

  • Transmission Speed: Cat6 Gigabit (1000Mbps), 568B Wiring

  • Conductor: 26AWG Stranded Pure Oxygen-Free Copper

  • Shielding (S/FTP): Double Shielded (Thick Aluminum Foil + ≥85% High-Density Braid)

  • Durability: Built-in tensile ropes and tough cotton fillers for high pull-strength

  • Cable OD & Temp: 6.8mm Outer Diameter, rugged -40°C to 80°C operating range

  • MOQ / Lead Time: Low MOQ, 7–15 days (project-based)

Request Custom Quote

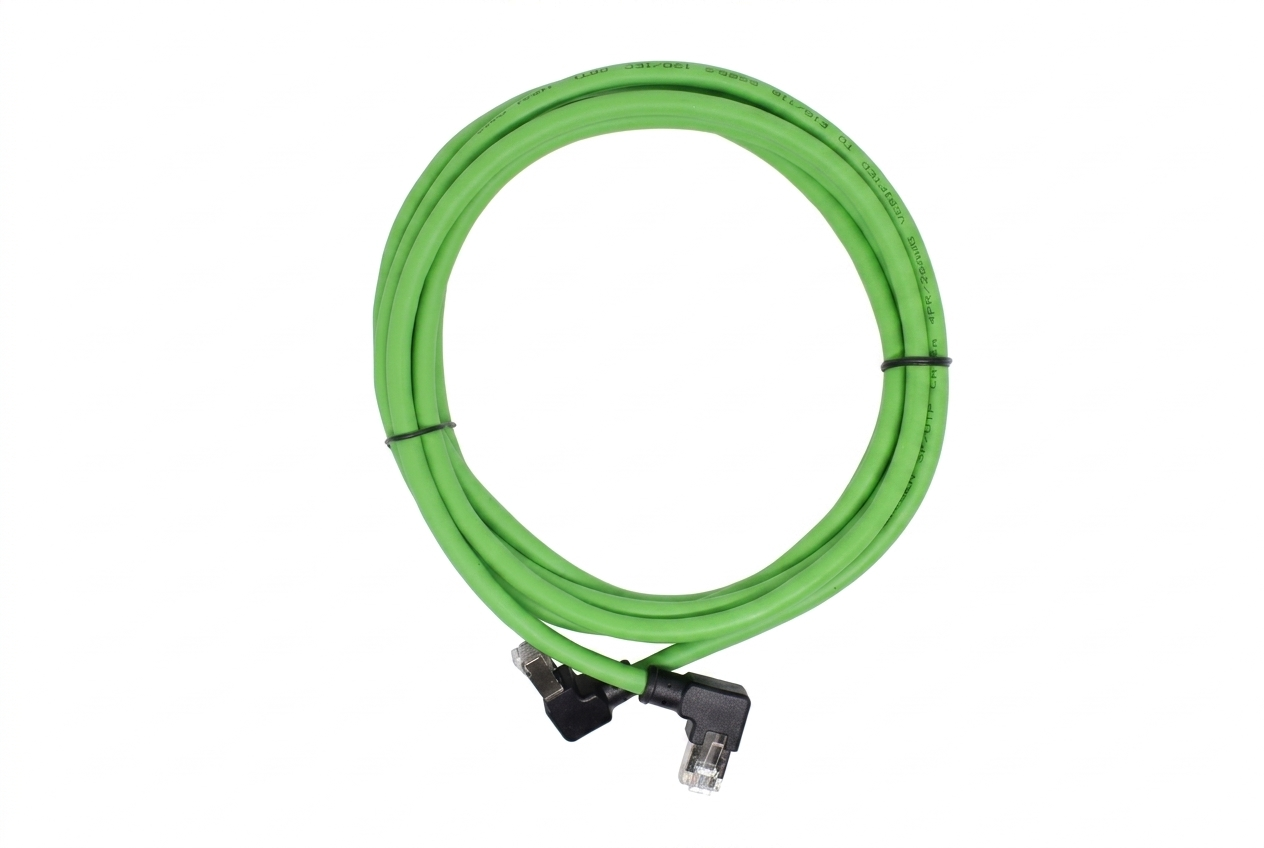

  • Comprehensive Angled Connector Tooling: We own complete injection molds for every possible RJ45 orientation: Straight, 90° Up-Angle, 90° Down-Angle, 90° Left-Angle, and 90° Right-Angle. This allows you to perfectly route cables in extremely tight spaces, such as industrial control panels, edge computing servers, and wall-mounted enclosures, without stressing the cable or the device port.

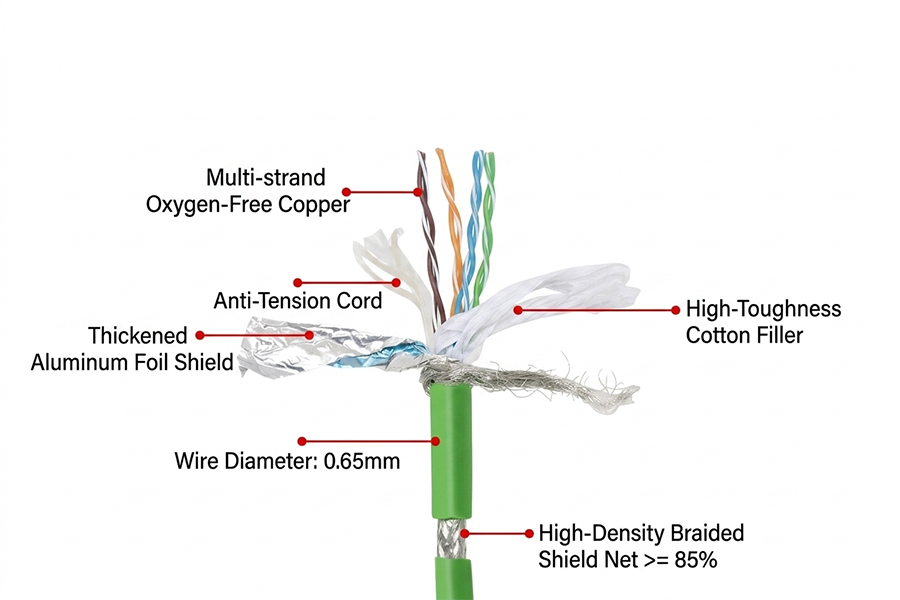

  • Premium Industrial Cable Construction: Designed to survive harsh environments, our cable structure features:

    • Conductors: Multi-strand oxygen-free copper (26AWG) ensuring extreme flexibility and stable gigabit data transmission.

    • Ultimate EMI/RFI Protection: A robust S/FTP design utilizing a thick aluminum foil layer wrapped by a high-density tinned copper braided mesh (≥85% coverage) to block out industrial electrical noise.

    • Reinforced Core: Internally fortified with high-toughness cotton yarn and specialized tensile ropes (strain relief cords) to withstand aggressive pulling and repeated flexing in automation machinery.

  • Custom Lengths & Jackets: Available in lengths ranging from a short 0.5m patch to an 80m run. Standard jackets are available in Industrial Green or Black, with options to upgrade to PUR for advanced oil and abrasion resistance.
